Aerospace & Defense Catalog
  • Humidity Indicators

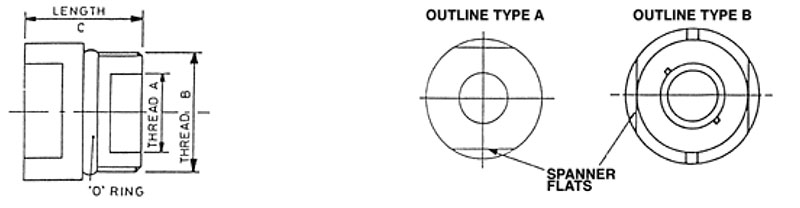

  • Humidity Indicators - diagram
A large range of humidity indicator plugs are available. These externally mounted color change humidity indicators are for determining relative humidity inside rigid containers, electronic enclosures, optical cavities and flexible moisture-vapor-proof bags. The DT1 series can be used in conjunction with a static type desiccator. Mounting options include thread mounting into enclosure, panel bushing or crimp nut.

RFI humidity indicators plugs are also available by request.
Check thread size on static desiccator for campatibility with thread A
1 - 20 of 20 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Style

Thread A (Internal)

Thread B (External)

Overall Length C

Outline Type

Relative Humidity

N/A No 1 N/A 5/8-28 UNS-2B N/A 3/4-20 UNS 2A N/A 3/4 in N/A N/A 50% RH
N/A No 2 N/A 5/8-28 UNS-2B N/A 3/4-20 WHIT N/A 3/4 in N/A N/A 50% RH
N/A 1HP1 N/A 5/8-28 UN-2B N/A 3/4-20 UNEF-2A N/A 3/4 in N/A B N/A 50% RH
N/A 1HP2 N/A 5/8-28 UN2B N/A 3/4-20 WHIT N/A 3/4 in N/A B N/A 50% RH
N/A 1HP5 N/A 5/8-28 UN-2B N/A 3/4-20 UNEF-2A N/A 3/4 in N/A B N/A 15% RH
N/A 1HP 3M N/A M16 x 1.0-6H N/A M20 x 1.5-6g N/A 22.5 mm N/A A N/A 30 & 50% RH
N/A 1HP 4M N/A M16 x 1.0-6H N/A M20 x 1.5-6g N/A 22.5 mm N/A A N/A 15 & 30 % RH
N/A 1HP 6M N/A M16 x 1.0-6H N/A M20 x 1.5-6g N/A 22.5 mm N/A A N/A 30 & 50% RH
N/A 1HP 8M N/A M20 x 1.0-6H N/A M25 x 1.5-6g N/A 26.7 mm N/A B N/A 30 & 50% RH
N/A 1HP 9M N/A M20 x 1.0-6H N/A M25 x 1.5-6g N/A 26.7 mm N/A B N/A 15 & 30% RH
N/A 1HP 10M N/A M30 x 1.0-6H N/A M35 x 1.5-6g N/A 26.7 mm N/A B N/A 30 & 50% RH
N/A 1HP 11M N/A M30 x 1.0-6H N/A M35 x 1.5-6g N/A 26.7 mm N/A B N/A 15 & 30 % RH
N/A R1HP 7 N/A 5/8-28 UN-2B N/A 3/4-20 UNEF-2A N/A 3/4 in N/A B N/A 15 & 30% RH
N/A R1HP 3M N/A M16 x 1.0-6H N/A M20 x 1.5-6g N/A 22.5 mm N/A A N/A 30 & 50% RH
N/A R1HP 4M N/A M16 x 1.0-6H N/A M20 x 1.5-6g N/A 22.5 mm N/A A N/A 15 & 30% RH
N/A R1HP 6M N/A M16 x 1.0-6H N/A M20 x 1.5-6g N/A 22.5 mm N/A A N/A 30 & 50% RH
N/A R1HP 8M N/A M20 x 1.0-6H N/A M25 x 1.5-6g N/A 26.7 mm N/A B N/A 30 & 50% RH
N/A R1HP 9M N/A M20 x 1.0-6H N/A M25 x 1.5-6g N/A 26.7 mm N/A B N/A 15 & 30% RH
N/A R1HP 10M N/A M30 x 1.0-6H N/A M35 x 1.5-6g N/A 26.7 mm N/A B N/A 30 & 50% RH
N/A R1HP 11M N/A M30 x 1.0-6H N/A M35 x 1.5-6g N/A 26.7 mm N/A B N/A 15 & 30% RH
